| Brand Name: | Seacent |
| Model Number: | 2x64 ABS Module |
| MOQ: | 1 piece |
| Price: | USD 4.98-10.38 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

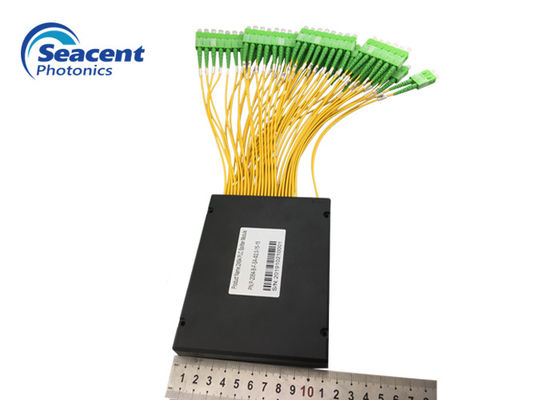

Low Insertion Loss Cassette PLC Splitter 2X64 For FTTX PON Network
Low Insertion Loss Cassette PLC Splitter 2X64 For FTTX PON
Seacent Photonics pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It’s mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
Application:
l Fiber to The Home (FTTH)
l Passive optical networks (PON)
l Local Area Networks (LAN)
l Cable Television (CATV)
l Test Equipment
l FTTX Systems
l PON Networks
l CATV Links
l Optical Signal Distribution
Specifications:
| Item | Parameter |
|
IL (dB) |
13.5 |
|
Uniformity (dB) |
≤1.0 |
|
PDL dB) |
≤0.3 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber type |
G657A1 or customized |
|
Fiber length (m) |
1.0M or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Temperature stability (dB) |
≤0.5 |
|
Maximum power (nW) |
1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Ordering information:
|
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
1x2 100x45x10 mm to or 1x8 100x80x10 mm
1x12 100x80x10 mm to or 1x32 120x80x18 mm
1x64 to 141x115x18 mm 1x128
|
|
|
