| Brand Name: | Seacent |
| Model Number: | Fiber array-8CH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500pcs/day |

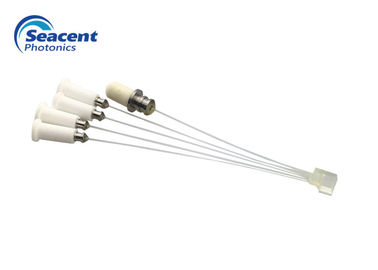

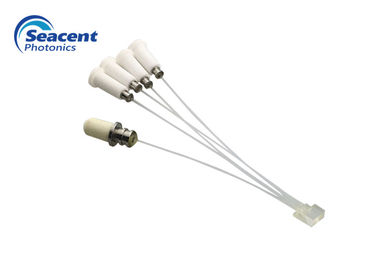

5 Channel PLC Splitters Optical Fiber Array PC UPC APC Ferrule Polish
5 Channel Optical Fiber Array for PLC Splitters
Fiber Array Description
Optical Fiber Array with precision and accuracy within V-groove blocks, an ultra-precision processing technology is used to create fiber arrays. These arrays are made by removing the fiber coating from bare fibers and placing them in V-grooves. A pressurization member applies pressure to the fibers, which are then held in place with adhesive.
The submicron-level accuracy required for this process helps to minimize connection loss.
Fiber Array Specifications
| Item | Parameter |
| Number of channels | 1CH ~ 128CH |
| Material | Quartz glass, borosilicate, silicon |
| Core distance/tolerance(μm) | 250, 127 / 0.7 |
| Fiber length (m) | 2.0±0.1 |
| Polishing angle ( ° ) | 0,+8, -8 (±0.3) |
| Polishing flatness | ﹤ 5 fringes@633nm |
| Fiber type | SMF-28e or SMF-28e XB |
| Operating temperature(℃) | -40~85 |
Our workshop
Technical Support
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contact us from website directly for our catalogue and price list;
|
|
