| Brand Name: | Seacent |
| Model Number: | 1x8 PLC Splitter |
| MOQ: | 10 pcs |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

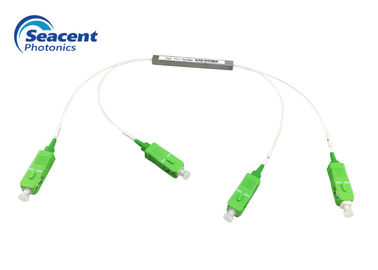

1x8 Plc Splitter Single Mode Fiber Optic PLC Splitter For FTTH
Seacent’s PLC splitters are based on planar lightwave circuit technology and high precision alignment.
PLC splitters can split or combine light from one or two fibers into multi outgoing fibers uniformly over a wide spectral range with ultra-low insertion loss and low polarization-dependent loss. Seacent's splitters are highly compact and offer excellent optical performance with high reliability.
Fiber Optic PLC Splitter Features:
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Stability Telcordia GR-1221 and GR-1209
- High Reliability and Stability
Fiber Optic PLC Splitter Appliacation:
Fiber Optic PLC Splitter Specifications:
| Item | 1*8 Without Conn | With Conn |
| Operating Wavelength | 1260~1650㎚ | |
| Insertion Loss(IL) | ≤10.2 | ≤10.5 |
| Uniformity(UF) | ≤0.8 | |
| Polarization Dependent Loss(PDL) | ≤0.25 | |
| Return Loss(RL) | ≥55㏈ | |
| Directivity | ≥55㏈ | |
| Fiber length (m) | 1.0 or customized | |
| Temperatures stability | -40℃--85℃(≤0.5) | |
| Working Temperature | -40℃--85℃ | |
| Storage temperature °C | -40℃--85℃ | |
| Maximum power (mW) | 1000 | |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Fiber Optic PLC Splitter Specification
|
|
