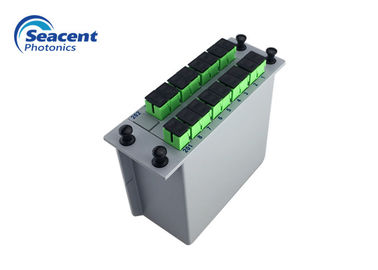

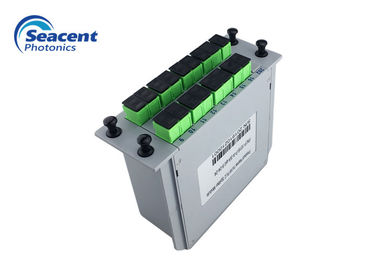

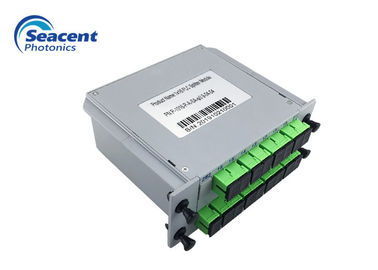

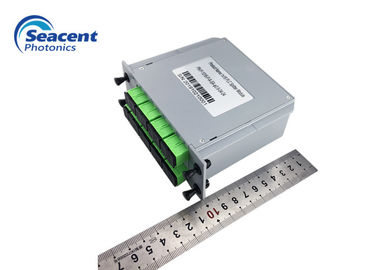

1X16 Insert Type PLC Splitter Module FTTX FTTH
PLC Splitter Module Description
PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
PLC Splitter Module Features
PLC Splitter Module Applications
PLC Splitter Module Parameters
1XN
| Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 | 1X48 | 1X64 | 1X128 |
| Working wavelength (nm) | 1260-1650 | |||||||||||
| Fiber type | G657A1 or customized | |||||||||||
| Insertion loss (dB) | 3.9 | 6.1 | 7.2 | 9.0 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 |
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.5 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||||||||
| Directionality (dB) | ≥55 | |||||||||||
| Fiber length (m) | 1.0 or customized | |||||||||||
| Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||||||||
| Working temperature °C | -40℃--85℃ | |||||||||||
| Storage temperature °C | -40℃--85℃ | |||||||||||
| Maximum power (nW) | 1000 | |||||||||||
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
2XN
| Parameter | 2X2 | 2x4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Working wavelength (nm) | 1260-1650 | |||||
| Fiber type | G657A1 or customized | |||||
| Insertion loss (dB) | 4.2 | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||
| Directionality (dB) | ≥55 | |||||
| Fiber length (m) | 1.0 or customized | |||||
| Temperature stability (dB) | -40℃--85℃(≤0.5) | |||||
| Working temperature °C | -40℃--85℃ | |||||
| Storage temperature °C | -40℃--85℃ | |||||
| Maximum power (nW) | 1000 | |||||
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
