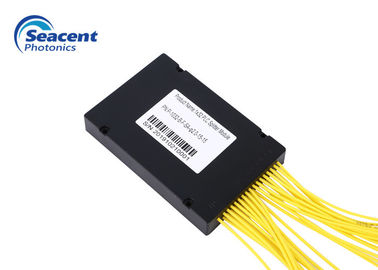

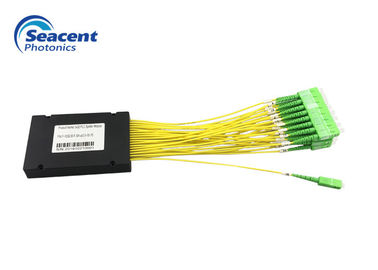

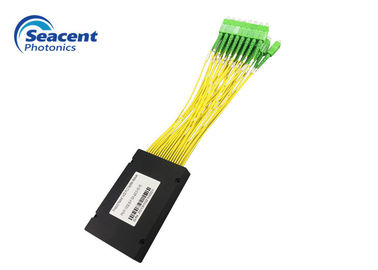

High Stability Cassette PLC Splitter 1x32 ABS Optical Splitter Box
Cassette Plc Splitter description:
Cassette Plc Splitter is an optical power management device fabricated by using silica optical waveguide technology. It features a compact size, high reliability and wide operating wavelength range with good channel-to-channel uniformity. These PLC units are widely used in PON networks for optical signal power splitting.
Cassette Plc Splitter features:
Good channel uniformity.
High stability and reliability
Certified by Telcordia GR.1209 and GR.1221.
Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209
Cassette Plc Splitter usage:
wired TV internet
PON-FTTX network
Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive Optical Networks (PON)
Gigabit Passive Optical Networks (GPON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Cassette Plc Splitter Ordering Information:
| product type | Inlet and exit diameter | Inlet and fiber length |
ABS box size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128
|
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
|
Technical parameters: 1XN plc splitter
| Parameter | 1X2 | 1X3 | 1X4 | 1X6 | 1X8 | 1X12 | 1X16 | 1X24 | 1X32 | 1X48 | 1X64 | 1X128 | |||||||||||
| Working wavelength (nm) | 1260-1650 | ||||||||||||||||||||||
| Fiber type | G657A1 or customized | ||||||||||||||||||||||
| Insertion loss (dB) | 3.9 | 6.1 | 7.2 | 9.0 | 10.2 | 12.5 | 13.5 | 15.5 | 16.8 | 18.4 | 20.1 | 23.8 | |||||||||||
| Uniformity (dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.5 | |||||||||||
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.35 | ≤0.35 | |||||||||||
| Return loss (dB) | ≥55 | ||||||||||||||||||||||
| Directionality (dB) | ≥55 | ||||||||||||||||||||||
| Fiber length (m) | 1.0 or customized | ||||||||||||||||||||||
| Temperature stability (dB) | -40℃- 85℃(≤0.5) | ||||||||||||||||||||||
| Working temperature °C | -40℃- 85℃ | ||||||||||||||||||||||
| Storage temperature °C | -40℃- 85℃ | ||||||||||||||||||||||
| Maximum power (nW) | 1000 | ||||||||||||||||||||||
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Technical parameters: 2XN plc splitter
| Parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Working wavelength (nm) | 1260-1650 | |||||
| Fiber type | G657A1 or customized | |||||
| Insertion loss (dB) | 4.2 | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 | |||||
| Directionality (dB) | ≥55 | |||||
| Fiber length (m) | 1.0 or customized | |||||
| Temperature stability (dB) | -40℃- 85℃(≤0.5) | |||||
| Working temperature °C | -40℃- 85℃ | |||||
| Storage temperature °C | -40℃- 85℃ | |||||
| Maximum power (nW) | 1000 | |||||
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Pictures
Details Parameters
PLC Splitter-ABS type-Seacent Photonics.pdf
|
|
