| Brand Name: | Seacent |
| Model Number: | Singlemode Simplex |
| MOQ: | 1 piece |
| Price: | USD 0.57~0.85 per piece |
| Supply Ability: | 150,000 pieces |

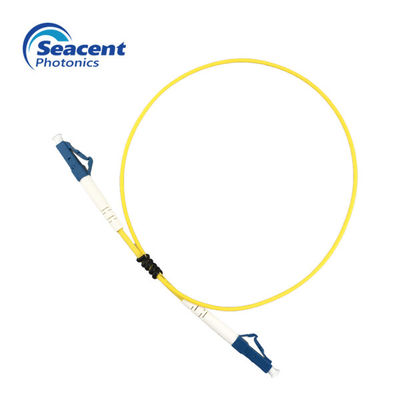

LC LC UPC Fiber Optic Patch Cord Singlemode Simplex ISO9001 Approved
Quick Details:
Precise connector
Customized length
Excellent mechanical capability
Low insertion loss
Good durability and exchangeability
Compliant with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Features:
Low insertion loss High return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Applications:
Telecommunication networks
Optical access network
Data processing networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Technical parameter:
| FC,SC,LC | ST,MU | MTRJ | ||||||||||||||||||||
| SM | MM | SM | MM | SM | MM | |||||||||||||||||
| parameter | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | ||||||||||
| Working wavelength(nm) | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | ||||||||||||||||
| Fiber type | G657A1 or customed | |||||||||||||||||||||
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||||||
| Return loss(dB) | ≥55 | ≥60 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ||||||||||
| Repeatability(dB) | ≤0.1 | |||||||||||||||||||||
| Interchangeability(dB) | ≤0.2 | |||||||||||||||||||||
| Number of plugs(frequency) | ≥1000 | |||||||||||||||||||||
| Tensile strength (N) | ≥70 | |||||||||||||||||||||
| Durability (dB) | ≤0.2 | |||||||||||||||||||||
| Working temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
| Storage temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
Ferrule technical parameters:
| description | Single mode | Multi mode |
| length | (10.50±0.05)nm | (10.50±0.01)nm |
| Outer diameter | (2.4990±0.005)nm | (2.4990±0.001)nm |
| inside diameter | (0.125±0.001)nm | (0.126±0.129)nm |
| Concentricity | ≤1.0 | ≤4.0 |
Ordering Information:
|
|
|
|
|
|
|
|
Connector type |
Casing color |
Fiber type |
Cable diameter |
Fiber length |
Cable type | Casing material |
|
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST 8=Customized |
1=yellow 2=Orange 3=Aqua blue S=Customized |
1=SM9/125 G652D 2=SM9/125 G657A 3=MM50/125 OM3 4=MM62.5/125 OM1 S=Customized |
1=0.9mm 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m S=Customized |
1=Single core 2=Double core 3=waterproof 4=Branch 5=With fiber 6=Bundle |
1=PVC 2=LSZH 3=OFNR |
|
|
