| Brand Name: | Seacent |
| Model Number: | 1x8 insertion module |
| MOQ: | 1 piece |
| Price: | USD 4.8-5.88 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

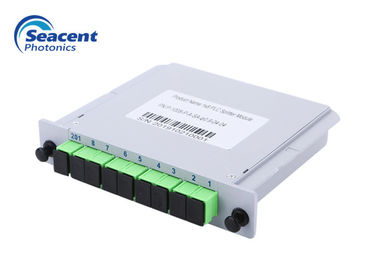

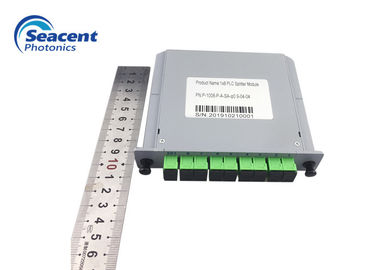

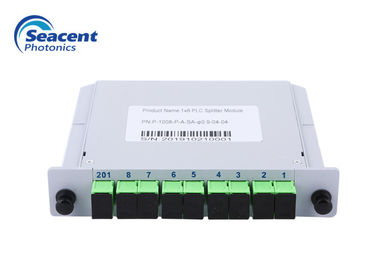

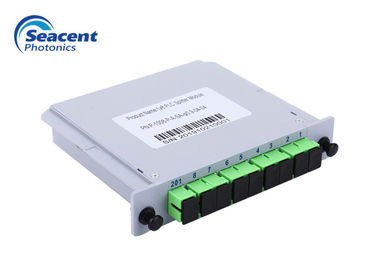

1x8 Fiber Optic PLC Splitter Insertion Module 0.9mm With SC APC Connector
1x8 Fiber Optic PLC Splitters With SCAPC Connector manufactured by Seacent Photonics are available in the form of either insertion module cassette with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. The insertion module PLC Splitter have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1x4, 1x8, 1x16 ,1x32 and 1x64 configurations, as well as customized structures of 2x8, 2x16, 2x32,2x64.
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
11.1 |
|
Uniformity (dB) |
≤1.0 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
Insert box size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
2x2 to 130x100x25 mm 2x8
2x12 to 130x100x50 mm 2x16
2x24 to 30x100x102 mm 2x32
2x64 130x100x206 mm |
|
|
