| Brand Name: | Seacent |
| Model Number: | 1x8 steel tube |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

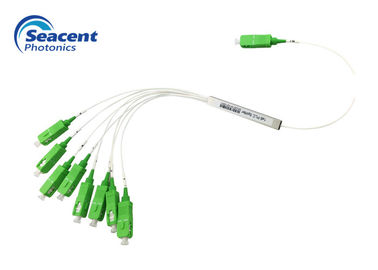

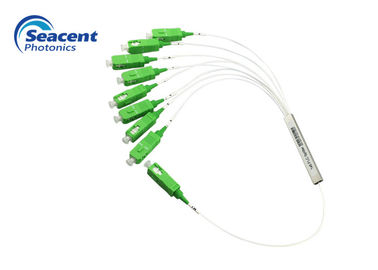

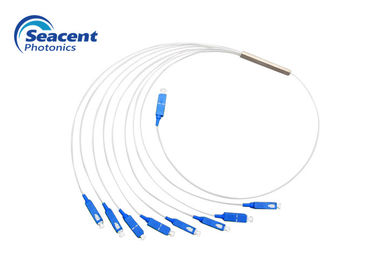

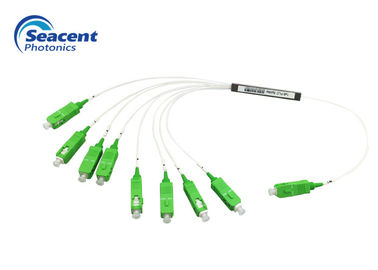

Fiber Optic PLC Splitter steel tube 1x8 with SC/APC connector
1x8 Steel Tube 0.9mm Fiber Optic PLC Splitters With SC SCAPC FCAPC Connector manufactured by Seacent Photonics are stable quality, low cost and largely demanded fiber optic products, used mainly inside closure or ODF to split one wavelength into many ports; Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Seacent Photonics offers excellent performance PLC splitter .Here are the details of 2x64 steel tube fiber optic splitter:
Features:
Appliacation:
Specifications:
| Item | Parameter |
|
IL(dB) |
≤10.2 |
|
Uniformity (dB) |
≤ 0.8 |
|
PDL (dB) |
≤0.25 |
|
RL(dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature |
40℃- 85℃ |
|
Fiber type |
G657A1 or customized |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=0.9mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
2x2 to 4x7x60mm 2x8
2x12 to 4x12x60 mm 2x16
2x24 to 6x20x80 mm 2x32
2x64 6x40x100 mm |
|
|
