| Brand Name: | Seacent |
| Model Number: | 2x2 insertion type |
| MOQ: | 1 piece |
| Price: | USD 4.49-4.99 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

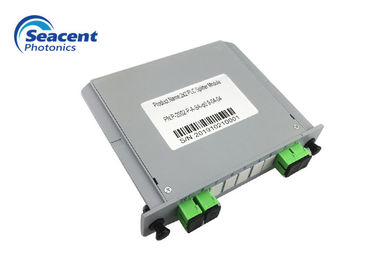

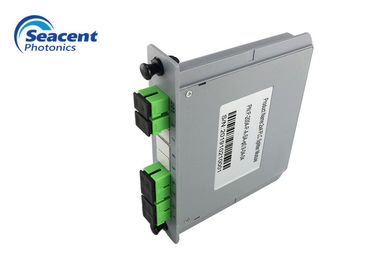

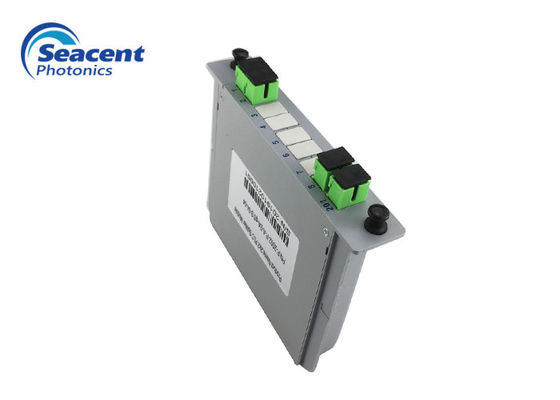

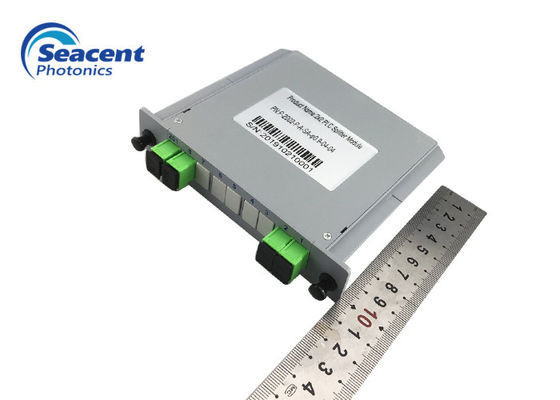

Fiber Optic PLC Splitter insertion type 2x2 0.9mm 0.5m with SC/APC connectors
Brief introduction :
Seacent Photonics PLC Splitter is a kind of waveguide optical power distribution device integration based on a quartz substrate plate , like coaxial cable transmission system, network system also needs to be light signal coupling, branches, distribution and the optical divider is needed for implementation.It is one of the most important fiber link passive components, fiber optic tandem device having a plurality of inputs and a plurality of output terminals, especially for passive optical network (EPON, GPON, BPON, etc.) to connect the central office and terminal equipment and allow branching optical signals.
Features:
Application:
Specifications:
| Item | Parameter |
|
Insertion loss (dB) |
4.5 |
|
Uniformity (dB) |
≤0.8 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
Return loss (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
Insert box size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
2x2 to 130x100x25 mm 2x8
2x12 to 130x100x50 mm 2x16
2x24 to 30x100x102 mm 2x32
2x64 130x100x206 mm |
|
|
