| Brand Name: | Seacent |
| Model Number: | 1X32 ABS Box |
| MOQ: | 1 piece |
| Price: | USD 6.9-16.7 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

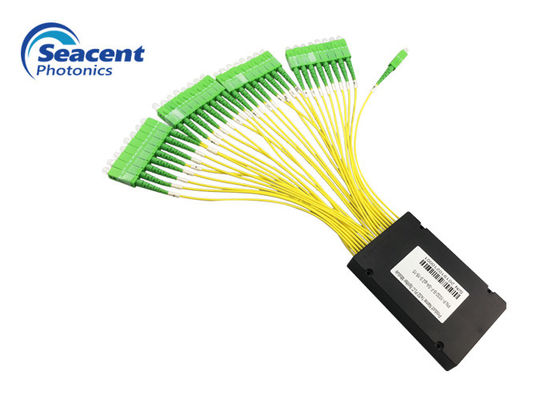

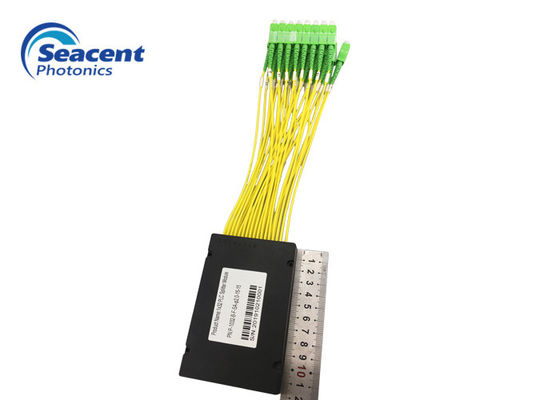

High Stability 2.00mm Plc Fiber Splitter 1X32 For Wired TV Internet
Seacent Photonis offers high quality ABS Box PLC splitter. Fiber optical splitter is used to split the fiber optic light into several parts at a certain ratio. The fiber optic splitter is an important passive component used in PON FTTX networks. There are mainly two kinds of passive FTTH optical splitters: one is the traditional fused type splitter as known as FBT coupler or FBT WDM optical splitter, which features competitive price; the other is the PLC splitter based on the PLC (Planar Lightwave Circuit) technology, which has a compact size and suits for density applications.
The information below is all about the Fiber Optic PLC Splitter 1X32 in ABS Box 2.00mm with SC/APC Connectors,Customized designs are also available for customer needs, call or e-mail us about anything you need that you don't see here.
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
16.8 |
|
Uniformity (dB) |
≤1.5 |
|
PDL dB) |
≤0.3 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber type |
G657A1 or customized |
|
Fiber length (m) |
1.0M or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Temperature stability (dB) |
≤0.5 |
|
Maximum power (nW) |
1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Ordering information:
|
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
1x2 100x45x10 mm to or 1x8 100x80x10 mm
1x12 100x80x10 mm to or 1x32 120x80x18 mm
1x64 to 141x115x18 mm 1x128
|
|
|
